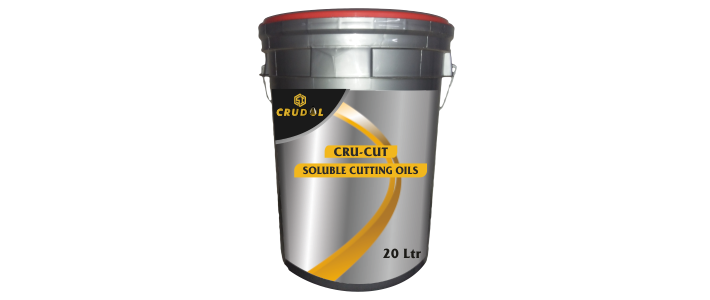

CRU-CUT
CRU-CUT
SOLUBLE CUTTING OILS
These are premium quality water soluble cutting oils, specially developed to form extremely stable milky emulsion even with extreme hard water (400 ppm) leading to excellent tool life and finish, in all metal cutting operations, where cooling is more important than lubrication. They have excellent antirust and anti-froth quality and cause no corrosion of machine, work piece or tool. They do not decompose chemically; leave objectionable odour, cause discoluration and staining. These are operator friendly and economical in use.
PALKUT - SL is blended from refined mineral oil, emulsifier and other additives.
PALKUT - SL SUPER is fortified with EP additive to suit wider range of metalworking operations. It has long service life even in hard water up to 600ppm, provides better lubricity and anti-wear properties.
Recommended for cutting, drilling, shaping, grinding, and other metal removal operations of ferrous and non ferrous materials where high quality of coolant is required. Not recommended for the machining of Magnesium due to potential fire hazards.
PROCEDURE
Dilution ratio with water varies between 5% to10% for PALKUT- SL
While preparing emulsion always add cutting oil to water (not the other way round) to prevent inversion of the emulsion.
Clean the Coolant reservoir and system periodically, recharge the system with 1% solution of Coolant to be charged and circulate for at least 1 hr. and then drain completely.
Check the emulsion strength regularly and top up if necessary.
PERFORMANCE LEVEL
IS 1115-1986 specifications.
PACKING
210L, 50L, 20L
| CHARACTERISTICS | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Sr.No | Properties | CRU-CUT | |||||||
| 1 | Kinematic Viscosity cSt @40ºC, min. | 20-30 | |||||||
| 2. | Flash Point COC, ºC, min. | 150 | |||||||
| 3. | Copper Strip Corrosion Properties | Passes | |||||||
| 4. | Cast Iron Corrosion Properties | Passes | |||||||
| 5. | pH 5% emulsion in D/W | 8-9 | |||||||
| 5. | pH 5% emulsion in D/W | 8-9 | |||||||
| 6. |
Emulsion Stability (for 24 hrs.) 5% in tap water 5% in 400ppm water |
8-9 | |||||||
| 7. | Heat Stability Properties ( at 0ºC to 5ºC) | Passes | |||||||
| 8. | Volatile Matter @100ºC for 16 hrs. % by mass, max. | 20 | |||||||
